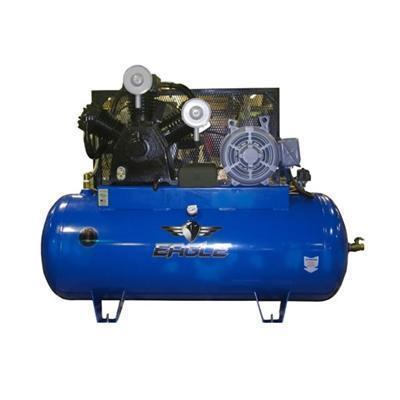

Eagle 15 Horsepower 120 Gallon Air Compressor

Eagle 15 Horsepower 120 Gallon Air Compressor

153120H2-MS208

Regular price $5,400.00 USD
Regular price $6,103.00 USD Sale price $5,400.00 USD
Sale Sold out

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

Features

  • CFM / PSI: 44.7 CFM @ 100 PSI
  • HorsePower: 15.0
  • Max Rated PSI: 200
  • Air Tank Capacity (Gal): 120
  • Electric Motor: 208V
  • Phase: 3
  • Motor RPM: 1800
  • Bare Comp. RPM: 860
  • Amp Draw: 42.9
  • Heavy Duty Pressure Switch Has An On/Off Control
  • Thermally Protected 15 HP 3 Phase Electric Motor Requires a 42.9 Amp Circuit: Magnetic Starte Included
  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration Improves Cooling and Extends Life
  • Individual & Removable Cylinders For Smoother Operation For Optimum Durability
  • Engine Idle Control Feature That Reduces Cost & Excessive Wear
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature Helps Comrpressor Run Quietly
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • 120 Gallon ASME Air Tank Rated To 200 PSI
  • High Efficiency Reed Valves Provide Maximum Performance 45 CFM at 100PSI
  • Outlet Valve Included1"Ball Valve Integrates Easily Into Your System
  • Pump Material Solid Cast Iron
  • Pump Type Two Stage
  • Pump Drive Belt Drive
  • 1 Year Limited Warranty
  • TMI472720

DIM:  72" x 26" x 55"

WEIGHT:  1090 LBS

SHIPPING DIMENSIONS- 1156# 75X36X59

Item Description Product Code
1 Compressor w/ Flywheel HPT15
2 Discharge Tube (2.5ft) ASSY TU-1-23/45/00
  Discharge Elbow
3 Pressure Gauge PG200-2.5R
4 Outlet Valve BV1MF
5 Air Receiver (tank) 120HE24X68-B
6 Drain Cock -Assembly 240-B
7 V-Belt B76
8 Belt Guard BG120GAL
9 Motor - 1 Phase, 208/230V EM15.0-18-30
  Mag Starter 7.5 HP 208/240V 1064MS
10 Check Valve P1010S-T
11 Pressure Switch 21UCBDB-170
12 Pulley - Motor 4B6.4PD
13 Hub or Bushing SD15/8
14 Unloader Tube  TU-1/4-CU
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-200
Eagle Compressor Oil EAOIL10

Item Description Part #
1 Cylinder Head Assembly (1st) (N/S) 51135-0100
2 Cylinder Head (1st) 51135-0101
3 Cylinder Head Assembly (2nd) (N/S) 51175-0100
4 Cylinder Head (2nd) 51124-0101
5 Cylinder Head Gasket (1st) 51135-0102
6 Cylinder Head Gasket (2nd) 51124-0102
7 Copper Gasket (1st) 51135-0111
8 Copper Gasket (2nd) 51124-0111
9 Inlet Valve Cover (1st) 51135-0115
10 Inlet Valve Cover (2nd) 51124-0115
11 Unloading Piston (1st) 51135-0122
12 Unloading Piston (2nd) 51124-0122
13 O-Ring (1st) (Inlet) 83602-710065
14 O-Ring (1st) (Outlet) 83602-710065
15 O-Ring (2nd) 83602-770055
16 O-Ring (1st) (N/S) 83601-770022A
17 O-Ring (2nd) (N/S) 83601-770022
18 Outlet Valve Push Cover (1st) 51135-0145
19 Outlet Valve Push Cover (2nd) 51124-0145
20 Inlet Valve Assembly (1st)  51135-2100
21 Inlet Valve Assembly (2nd)  51124-2100
22 Outlet Valve Assembly (1st)  51135-3100
23 Outlet Valve Assembly (2nd)  51124-3100
24 In & Outlet Valve Plate (1st) 51135-2103
25 Inlet Valve Spring (N/S) 51135-2107
26 Outlet Valve Spring (N/S) 51135-3107
27 In & Outlet Valve Plate (2nd) 51124-2103
28 Cylinder (1st) 51135-4101
29 Cylinder (2nd) 51175-4201
30 Cylinder To Crankcase Gasket 51135-4103
31 Piston (1st) 51135-5101
32 Piston (2nd) 51175-5201
33 Piston Pin (1st) W/ Snap Ring 51135-5112
34 Piston Pin (2nd) W/ Snap Ring 51175-5212
35 Piston Snap Ring 51135-5107
36 Con-Rod Assembly (1st) W/ Dipper 51135-5120
37 Con-Rod Assembly (2nd) W/ Dipper 51175-5220
38 Con-Rod Piston Bush (1st) 51135-5108
39 Con-Rod Piston Bush (2nd) 51175-5208
40 Connecting Rod Crankpin Metal 51135-5109
41 Crankshaft 51135-4601
42 Compression Ring (1st) 51135-5103
43 Oil Control Ring (1st) 51135-5105
44 Compression Ring (2nd) 51124-5103
45 Oil Control Ring (2nd) 51124-5105
46 Crankshaft Counter Weight 51135-4603
47 Crankshaft Bolt 51135-4681
48 Counter Weight Lock Washer 51135-4683
49 Oil Splash Dipper (Angle) 51135-5128
50 Oil Splash Dipper (Straight) 51135-5127
51 Crankcase Oil Plug 80112-000202
52 Crankcase 51135-4701
53 Front Bearing Cover 51135-4703
54 Front Bearing Cover Gasket 51135-4704
55 Rear Bearing Cover 51134-4706
56 Rear Bearing Cover Gasket 51134-4707
57 Front Oil Seal 51134-4708
58 Front Bearing 83502-30310
59 Rear Bearing 83502-32210
60 Inter-Cooler Tube (1st - 1st) 51175-7710
61 Inter-Cooler Tube (2nd) (N/S) 51175-7720
62 Elbow Fitting 51134-7701
63 "Y" Fitting 51134-7702
64 Elbow Fitting 51134-7710
65 Breather Cap 51124-4760
66 Oil Level Gauge Assembly W/ Gasket 51124-4770
67 Oil Level Gauge Shell 51124-4774
68 Air Strainer Assembly 51124-5600
69 Air Strainer Filter 51124-5614
70 Crankcase Oil Cap 51124-4719
71 Unloading Tube (N/S) 51135-7610
72 Connecting Ring (N/S) 69921-050202
73 Connecting Ring Nut (N/S) 79922-050102
74 Unloading Elbow (N/S) 69926-050101
75 Unloading Tee (N/S) 69927-050101
76 Compressor Pulley 51135-6601
78 Pulley Fan 51135-6601-1
79 V-Pulley Key 83703-001045
80 Comp. Pulley Flat Washer 51124-6621
81 Comp. Pulley Bolt 81501-1312045
