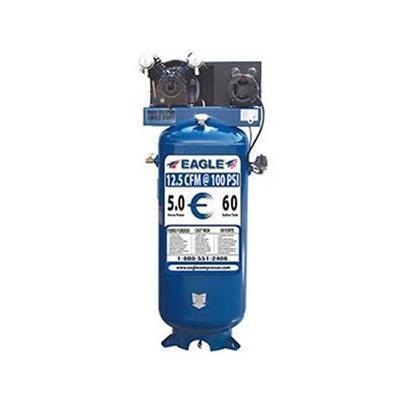

Eagle 5 Horse Power 60 Gallon Single Stage Air Compressor 208 230v 1 Phase

Eagle 5 Horse Power 60 Gallon Single Stage Air Compressor 208 230v 1 Phase

C4160V1

$1,516.25 USD
$2,400.00 USD $1,516.25 USD
Sale Sold out


Features

  • CFM / PSI: 12.5 CFM @ 100 PSI
  • Horse Power: 5.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 60
  • Electric Motor: 208/230V
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 15
  • Pressure Switch: 95-125
  • Rugged Cast Iron Cylinders Built To Work Hard And Last A Long Time
  • V Design Minimizes Vibration, Improves Cooling, Extends Compressor Life
  • Individual And Removalbe Cylinders For Smoother And Cooler Operation
  • Heavy Duty Pressure Switch With Convenient On/Off Control
  • No Magnetic Starter Required
  • Metal air Filters With "Auto Drop"Features Extends Compressor Life, Easy To Maintain
  • 208/230v Single Phase Motor Thermally Protected
  • 60 Gallon ASME Tank 150 PSI Rating, Convient Oil Drain On Front Of Unit, Easy View Oil Sight Gauge
  • 1 Year Factory Warranty
  • TMI119700

DIM:  30" x 20" x 66"

WEIGHT:  260 LBS




Item Description Product Code
1 Compressor w/ Flywheel PV02A
2 Discharge Tube TU-23-AL
3 Pressure Gauge PG200-2.5R
4 Air Receiver (tank) 60V20X48BR-B
5 Drain Cock -Assembly 240-B
6 V-Belt 4L530
7 Belt Guard BGC
8 Motor - 1 Phase, 208/230V EM05.0-36-10SPL
9 Wiring Harness  12/3-24-C4
10 Check Valve CTF1/2X1/2
11 Pressure Switch 21UCBDB-CH
12 Pulley - Motor MA38X5/8
13 Unloader Tube  TU1/4BLK
  *Fittings Required for TU-1/4CU 68-4A
14 Safety Valve PSV1/4-170
15 Ball Valve BV1/2MF
Eagle Compressor Oil EAOIL10

 Item Description Part Number
 Quantity
1 Intake Filter Assembly 51111-5600 2
2 Cylinder Head 52122-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 52122-2101 2
5 Valve Plate to Head Gasket 52122-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Intake Valve Reed
 52122-2103 8
8 Valve Plate to Cylinder Gasket 52122-2104 2
9 Piston 51122-5101 2
10 Piston Pin 51122-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51122-5120 2
13 Metal Triangle for Valve Plate Assy. (Not Shown) 51121-3101 2
14 Cylinder 52122-4101 2
15 Oil Filler Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51122-4701 1
19 Crankshaft 51122-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6205 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24

Oil Seal

 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51122-6601 1
27 Front Bearing Housing
 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51122-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ml or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4
 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2x Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-165 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Intake Valve Reed  (Item 7)
6x Valve Plate Screws
Metal Triangle for Valve Plate Assy. (Item 13)
C Ring Repair Kit Includes: 101000-265 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Flywheel Fastener Kit
 51122-6602 1
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2

Items Not Shown:
Woodruf Key for Engine 3/16x3/16x11/2 1
Woodruf Key for Pump (PV02A) 51122-4606 1
Grommet for Bullwhip 3203 GROMMET 1
