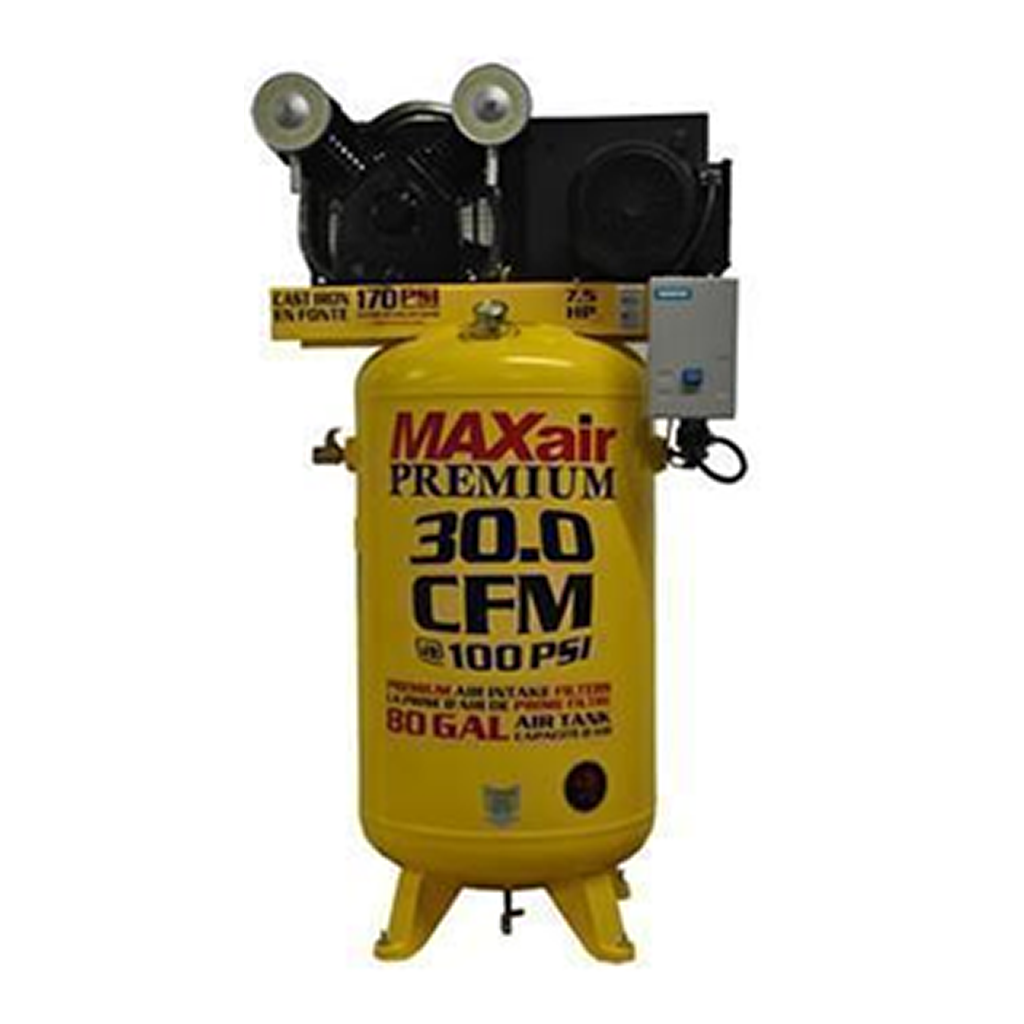

MaxAir 7 5 HP 80 Gallon Air Compressor

MaxAir 7 5 HP 80 Gallon Air Compressor

C7380V1-CS2-MAP

$2,775.00 USD
$5,061.65 USD $2,775.00 USD
Sale Sold out

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

Features:

  • 7.5 HP
  • CFM @ 100PSI:  30.0
  • Max Rated PSI - 170
  • Receiver Capacity - 80 Gallon
  • Motor voltage 208/230
  • Dimensions 36x23.5x68
  • Weight: 500LBS
  • Rugged compressor with cast iron cylinders
  • V style design minimizes vibration, improves cooling, and extends compressor life
  • Individual and removable cylinders for smoother, cooler operation & easy maintenance
  • Heavy duty pressure switch with On/Off control
  • Magnetic starter included
  • Sturdy metal belt guard
  • Liquid filled pressure gauge
  • Industrial 184 frame, 1750 RPM, thermally protected
  • CSA approved
  • 2 Year limited warranty
  • TMI247500

Item Description Product Code
1 Compressor w/ Flywheel PV05AHP
2 Discharge Tube (2.5ft) ASSY TU-2634-1A
3 Pressure Gauge PGLF200-2.5BM1/4
4 Air Receiver (tank) 80VE24X48-Y    2
5 Drain Cock -Assembly OSB WO DC ASSEMBLY
6 V-Belt A71
7 Belt Guard BG80GAL
8 Motor - 3 Phase, 208/230V EM07.5-18-30
9 Wiring Harness 12/3-24-C4
10 Check Valve P1010S-T
11 Combo Switch CS-20/24A
12 Pulley - Motor 2MAL72
13 Unloader Tube  TU-1/4-CU
  **Fittings Required for TU-1/4CU 68-4A
14 Safety Valve PSV1/4-200
15 Outlet Valve BV3/4MF
  Eagle Compressor Oil EAOIL10

Item Description Part Number Quantity
1 Intake Filter Assembly 51124-5600 2
2 Cylinder Head 52133-0101 2
3 Lift Limiter - Discharge Valve Plate 51121-3102 8
4 Valve Plate 52133-2101 2
5 Valve Plate to Head Gasket 52133-2105 2
6 Discharge Reed Valve 51121-2103 8
7 Intake Reed Valve 52133-2103 2
8 Valve Plate to Cylinder Gasket 52133-2104 2
9 Piston 52133-5101 2
10 Piston Pin 52133-5112 2
11 Piston Pin Snap Ring 52133-5107
12 Connecting Rod C/W Dipper 52133-5120 2
13 Connecting Rod Bearing (Each) 51133-5109 4
14 Cylinder
 52133-4101 2
15 Oil Filler Cap 51133-4719 1
16 Cylinder to Crankcase Gasket 52133-4103 2
17 Oil Sight Glass C/W Gasket 51111-4770T 1
18 Crankcase 52133-4701 1
19 Crankshaft 52133-4601 1
20 Front Bearing 83501-6306 1
21 Rear Bearing 83501-6306 1
22 Crankcase to Rear Bearing Housing Gasket 51133-4704 1
23 Rear Bearing Housing 51133-4703 1
24 Oil Seal 51133-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51133-6601 1
27 Front Bearing Housing 51133-4706 1
28 Crankcase to Front Bearing Housing Gasket 51133-4707 1
29 Connecting (Interstage) Tubing 52133-7710 1

1/4" Street Elbow (Oil Drain) STREL1/4 1

Interstage "Y" Fitting 51124-7702 2

Interstage "Elbow" Fitting 51124-7701 1

Eagle oil (1250ml or 42oz) EAOIL10 1
Item Description Part Number
 Quantity
A Intake Filter Element Kit Includes: 101000-310 2

1x Intake Filter Element

B Valve Repair Kit Includes: 101000-195 2

Valve Plate to Head Gasket (Item 5)


4x Outlet Reed Valves (Item 6)


4x Intake Reed Valve (Item 7)


4x Triangles


10x Valve Plate Screws


Valve Plate To Cylinder Gasket (Item 8)

C Ring Repair Kit Includes: 101000-295 2

Valve Plate to Head Gasket (Item 5)


Valve Plate to Cylinder Gasket (Item 8)


2x Compression Rings


1x Oil Control Ring


Cylinder to Crankcase Gasket (Item 16)

D Valve Plate Assembly (Not Shown) 52133-2100 2
E Flywheel Fastener Kit (Not Shown) 51133-6621

Includes:


Big Washer


Lock Washer


Bolt

Description Part Number Quantity
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 52133-0101U 2
