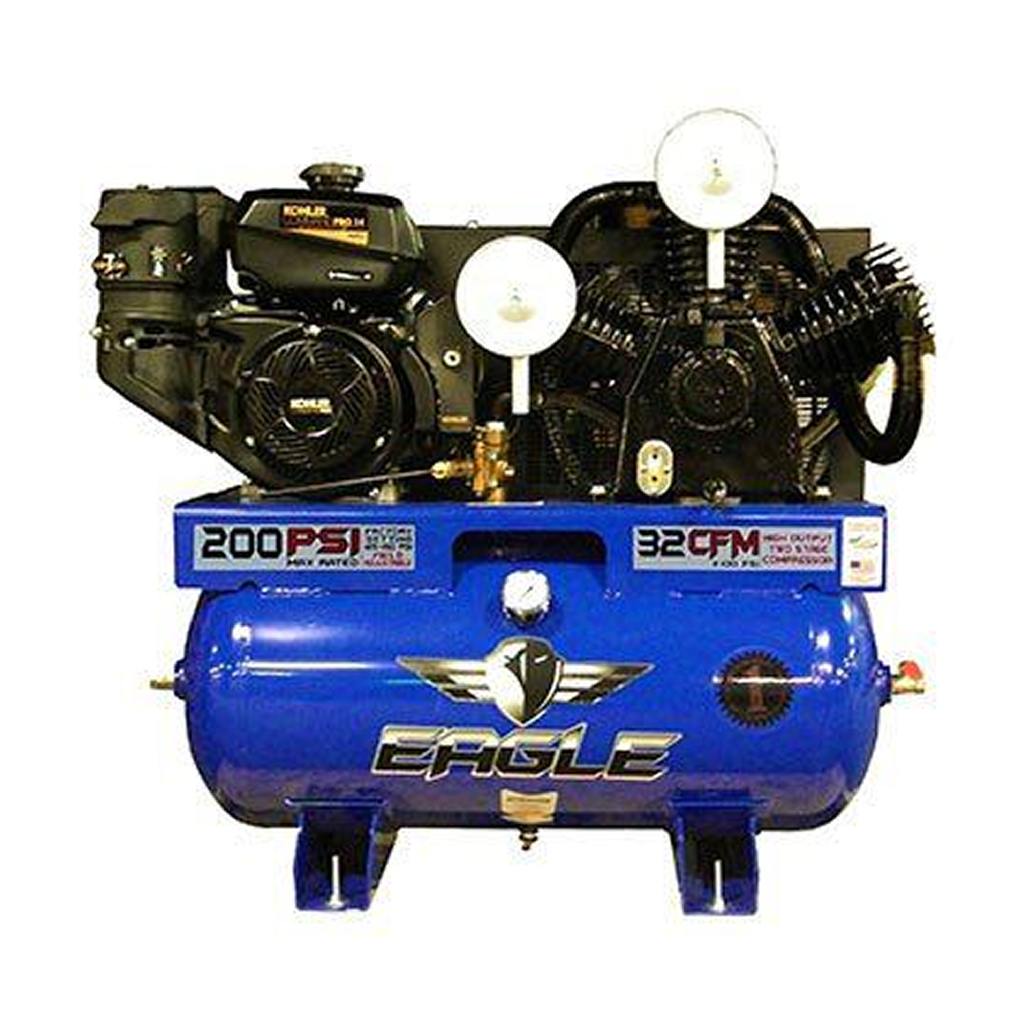

Eagle 14 Horsepower 30 Gallon Air Compressor

Eagle 14 Horsepower 30 Gallon Air Compressor

14G30TRKE-KP

Regular price $3,995.00 USD
Regular price $5,083.30 USD Sale price $3,995.00 USD
Sale Sold out




 Lift Gate Fees And  Residential fees May Apply On Top Of Shipping Fees

This Item Ships Truckline!

Features:

  • Rugged compressor with cast iron cylinders
  • "V" design minimizes vibration, improves cooling and extends compressor life
  • Individual removable cylinders for smoother, cooler operation & easy maintenance
  • Engine idle control feature that reduces cost & excessive wear
  • Kholer pro electric start motor
  • Metal air filters with "auto drop" feature
  • Convenient oil drain on front of unit
  • 30 Gallon ASME registered tank, 200 PSI rating
  • Easy view oil sight gauge
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel for cooler running & longer life
  • Sturdy metal belt guard
  • Outlet valve included
  • 32 FM @ 100 PSI
  • Maximum Rated PSI
  • Two Stage
  • TMI335000
  • 45" x 19" x 40"
  • 401 LBS

Item Description  Product Code Price
1 Compressor w/ Flywheel HPT10A $1,670.00
2 Discharge Tube (2.5ft) ASSY TU-31-BR $
3 Pressure Gauge PG200-2.5R $12.00
4 Outlet Valve BV3/4MF $12.00
5 Air Receiver (tank) 30H16X38TRK-B $
6 Drain Cock -Assembly 240-B $12.00
7 V-Belt B76 $
8 Belt Guard BG30GAL $90.00
9 Engine GX-390UTQAE2-R $
10 Unloader NLG-6 $
11 Pulley - Engine 2B4.2SH $
12 Safety Valve PSV1/4-200 $12.00
13 Engine Control w/ Cable TCLP-36-3104 $40.87
Eagle Compressor Oil EAOIL10 $4.50

    1st Stage 2nd Stage
Item Description Qty Part # Qty Part #
1 Intake Filter Assembly 2 51124-5600 N/A N/A
2 Cylinder Head 2 52133-0101 1 52133-0101
3 Lift Limiter - Discharge Valve Plate 8 51121-3102 2 51121-3102
4 Valve Seat 2 52133-2101 1 52133-2101
5 Valve Seat to Head Gasket 2 52133-2105 1 52133-2105
6 Discharge Valve Plate 8 51121-2103 2 51121-2103
7 Intake Valve Plate 2 52133-2103 1 52133-2103
8 Valve Seat to Cylinder Gasket 2 52133-2104 1 52133-2104
9 Piston 2 52133-5101 1 51174-5201
10 Piston Pin C/W Snap Rings 2 52133-5112 1 51174-5212
11 Piston Pin Bushing N/A N/A 1 52174-5208
12 Connecting Rod C/W Dipper 2 52133-5120 1 52174-5220
13 Connecting Rod Bearing (Pair) 2 51133-5109 1 51133-5109
14 Cylinder 2 52133-4101 1 52174-4201
15 Oil Filler Cap 1 51124-4719 N/A N/A
16 Cylinder to Crankcase Gasket 2 52133-4103 1 52133-4103
17 Oil Sight Glass C/W Gasket 1 51124-4770 N/A N/A
18 Crankcase 1 52174-4701 N/A N/A
19 Crankshaft 1 52174-4601 N/A N/A
20 Front Bearing 1 83501-6309 N/A N/A
21 Rear Bearing 1 83501-6308 N/A N/A
22 Crankcase - Rear Bearing Housing Gasket 1 52174-4704 N/A N/A
23 Rear Bearing Housing 1 52174-4703 N/A N/A
24 Oil Seal 1 52174-4708 N/A N/A
25 Crankcase Breather 1 51111-4761 N/A N/A
26 Flywheel C/W Fasteners 1 52174-6601 N/A N/A
27 Front Bearing Housing N/A N/A N/A N/A
28 Crankcase - Front Bearing Housing Gasket N/A N/A N/A N/A
29 Connecting (Interstage) Tubing 1 52134-7710 1 52174-7720
Misc. 1/4" Street Elbow (Oil Drain) 1 STREL1/4 N/A N/A
Misc. Rear Bearing Cover Gasket 1 51134-4707 N/A N/A
Misc. Rear Bearing Cover 1 52134-4706 N/A N/A
  Eagle Oil (2 Litres or 68oz) 1 EAOIL10 N/A N/A
A Intake Filter Element Kit Includes: 2 101000-310 N/A N/A
      - 1x Intake Filter Element
B Valve Repair Kit Includes: 2 101000-195 1 101000-195
      -Valve Seat to Head Gasket (Item 5)
      -4x Outlet Valve Plates (Item 6)
      -Intake Valve Plate (Item 7)
      -6x Valve Plate Screws
      -Valve Seat to Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 2 101000-295 1 101000-280
      -Valve Seat to Head Gasket (Item 5)
      -Valve Seat to Cylinder Gasket (Item 8)
      -2x Compression Rings
      -Oil Control Ring   2x
  1x
      -Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not shown) 2 52133-2100 1 52133-2100
